Expand the capabilities of your Pioneer Trim Router Jig with this precision-machined brass guide bushing set. Designed as an accessory for the Pioneer lineup, it enables accurate template routing, inlay work, pattern cutting, and other precision woodworking operations.

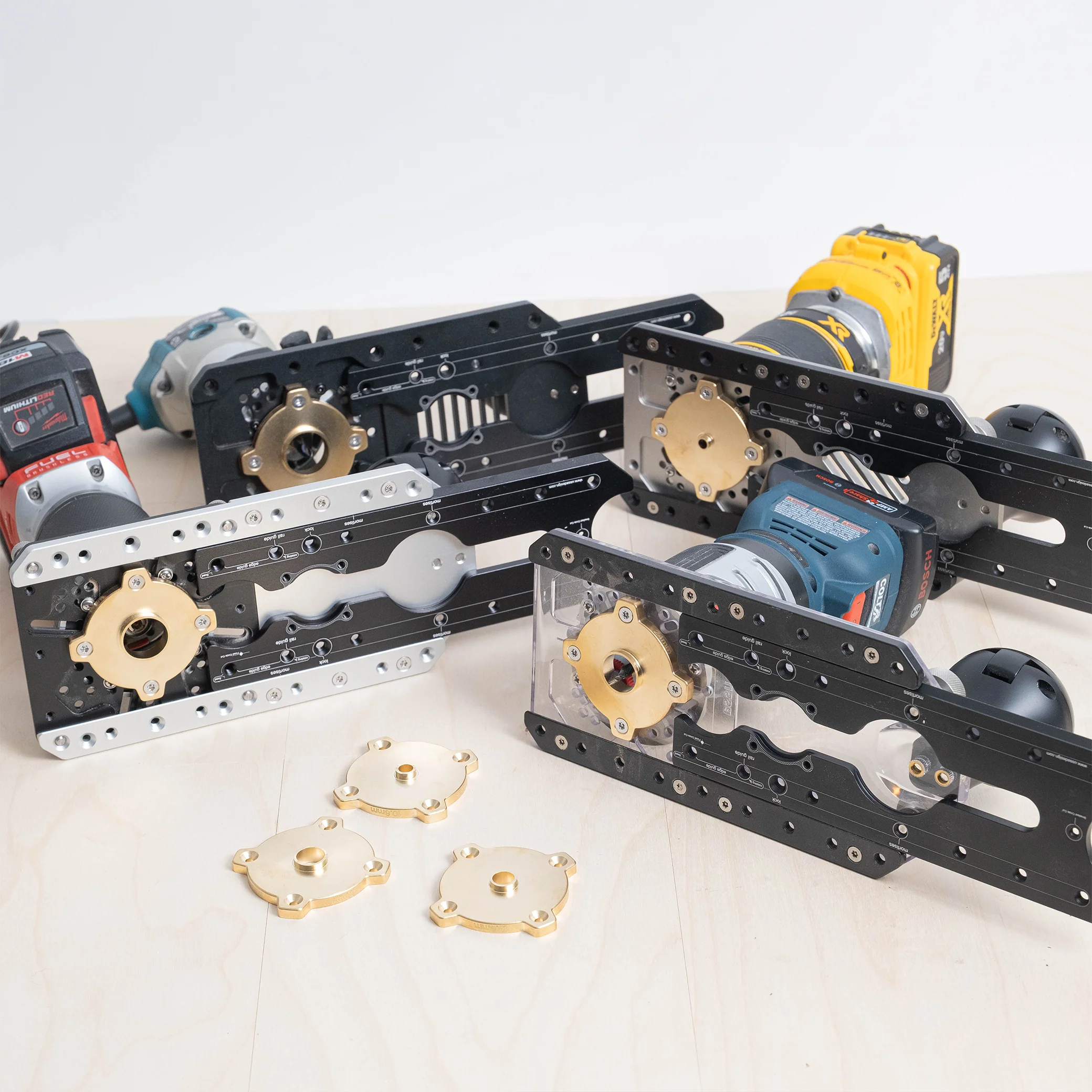

Compatibility

• Pioneer 003
• Pioneer Core
• Pioneer Craft
• Pioneer Lite (upgrade required)

Features

• Precision-machined solid brass construction

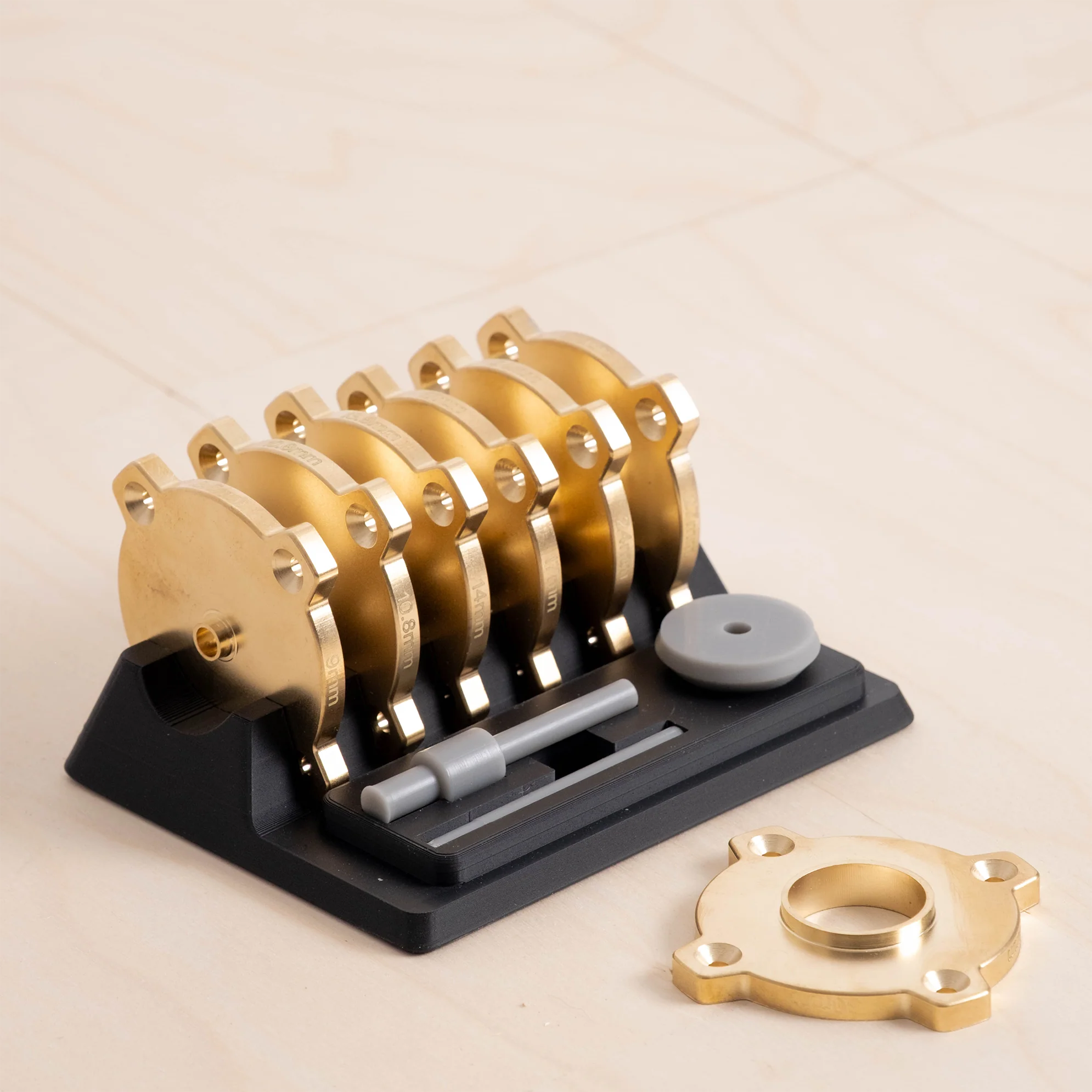

• Includes 7 guide bushings and 2 centering pins
• Compatible with 6mm, 1/4", 8mm, and 1/2" collets
• Available in both Metric and Imperial sizes

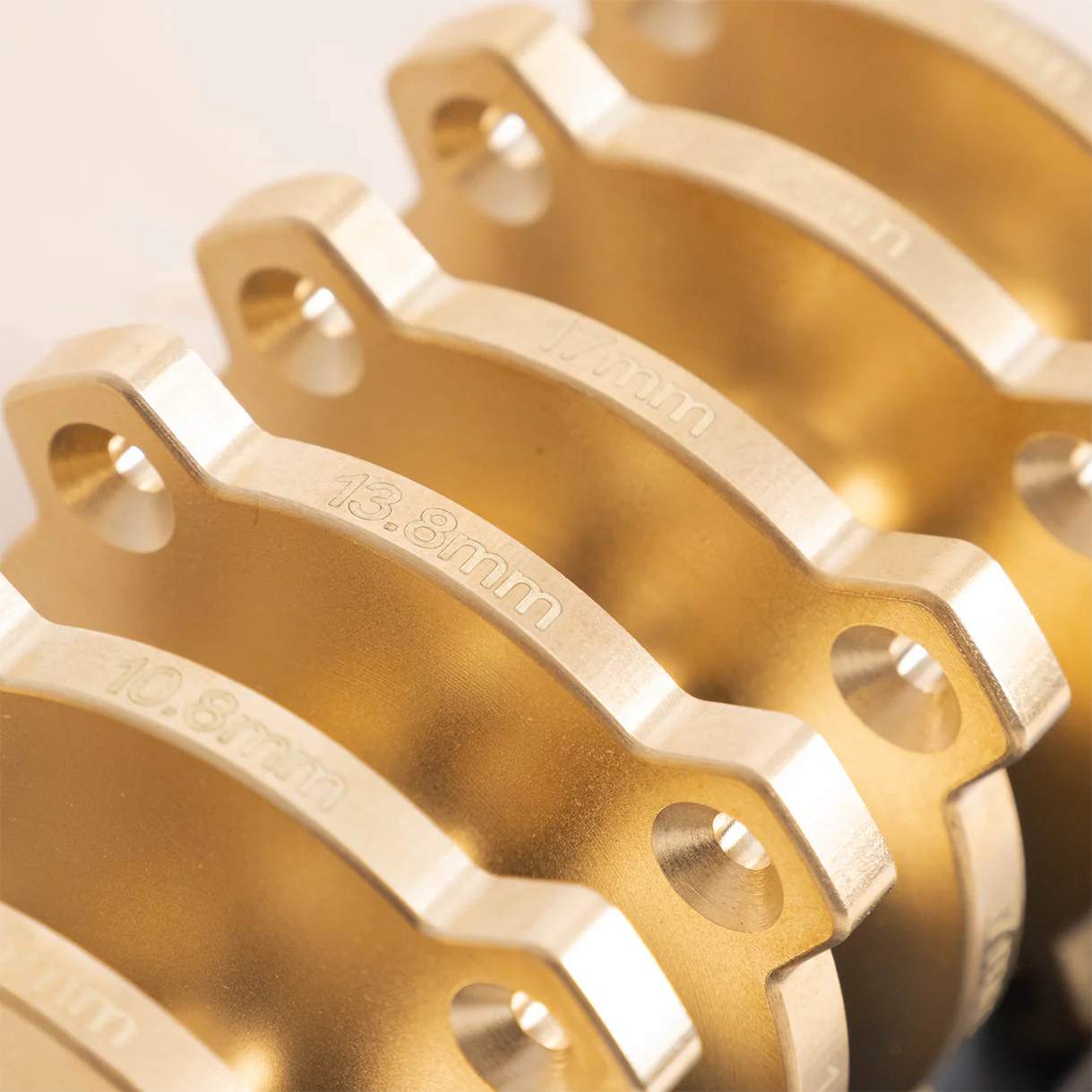

Metric Guide Bushing Sizes (Outer Diameter)

• 8.5mm
• 10.8mm
• 13.8mm
• 17mm
• 24mm
• 27mm
• 30mm

Imperial Guide Bushing Sizes (Outer Diameter)

• 3/8"
• 7/16"
• 5/8"
• 3/4"
• 1"
• 1-1/16"
• 1-3/16"

*Shipping August
